2014-2019 GM 9.5" 12 Bolt Duragrip Posi LSD Elite Gear Pkg

Elite ring and pinion sets use the latest engineering and manufacturing technology to produce OEM quality gears at an affordable price. All Elite gears are machined from premium 8620 alloy steel, then heat treated to the strictest standards for maximum strength and durability. Elite gears then go through an extensive lapping process to assure easy setup, excellent contact patterns, and quiet operation.

Duragrip Posi LSD

The Yukon Dura Grip provides aggressive yet smooth traction to give you the confidence & performance you need. Get longer life and better traction with the heavy duty Yukon Dura Grip Positraction. The Yukon Dura Grip uses a nodular case and forged 4320 internals for added strength along with composite clutches for high performance and long life. All units are Rebuildable and many offer upgrades to increase aggressiveness for racing applications.

Recommended Oil: Standard 80/90wt (non-synthetic) (No posi additive)

Master Install Kit

Premium master install kit uses only the highest quality components including Koyo brand bearings. Included are carrier bearings and races, pinion bearings and races, pinion seal, complete shim kit, ring gear bolts, pinion nut, crush collar (if applicable), threadlock, marking compound, brush, and gasket or RTV silicone.

Application: 2014-2019 Chevy/GMC 1500 Series Pickup 9.5" Rearend (5.3L Engine Only)

Rear Cover Bolts: 12

Ring Gear Bolts: 12

Axle Spline: 33

Pinion Splines: 30

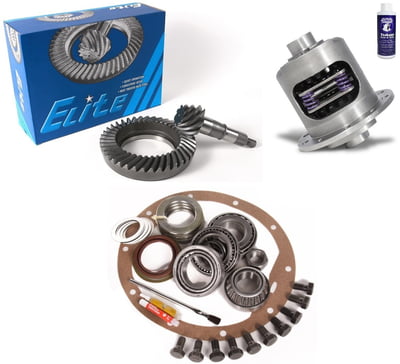

 Package Includes:

1- GM 9.5" Chevy 12 Bolt Elite Ring and Pinion set

1- GM 9.5" Chevy 12 Bolt Duragrip Posi LSD

1- GM 9.5" Chevy 12 Bolt Master Install Kit
