1998-2013 GM 9.5" 14 Bolt Detroit Truetrac Posi LSD Elite Gear Pkg

Elite ring and pinion sets use the latest engineering and manufacturing technology to produce OEM quality gears at an affordable price. All Elite gears are machined from premium 8620 alloy steel, then heat treated to the strictest standards for maximum strength and durability. Elite gears then go through an extensive lapping process to assure easy setup, excellent contact patterns, and quiet operation.

Detroit Truetrac Posi LSD

The Truetrac operates as a standard or open differential under normal driving conditions, allowing one wheel to spin faster or slower as necessary. When a wheel encounters a loss of traction or the terrain changes, the gear separation forces take effect and transfer torque to the high-traction wheel. The helical-shaped gears mesh with increasing force until wheel spin is slowed or completely stopped. When the vehicle exits the low traction situation, the differential resumes normal operation. Operation of the Truetrac is smooth, quiet and automatic.  The unit will engage without any driver knowledge or action required. It also has no wearable parts and requires no maintenance, meaning less time in the garage and more on the road.

Recommended Oil: Standard 80/90wt (non-synthetic) (No posi additive)

Master Install Kit

Premium master install kit uses only the highest quality components including Koyo brand bearings. Included are carrier bearings and races, pinion bearings and races, pinion seal, complete shim kit, ring gear bolts, pinion nut, crush collar (if applicable), threadlock, marking compound, brush, and gasket or RTV silicone.

Application: 1998-2013 GM 9.5" Chevy 14 Bolt Rearend (with semi float c-clip axles only)

Rear Cover Bolts: 14

Ring Gear Bolts: 12

Axle Spline: 33

Pinion Splines: 30

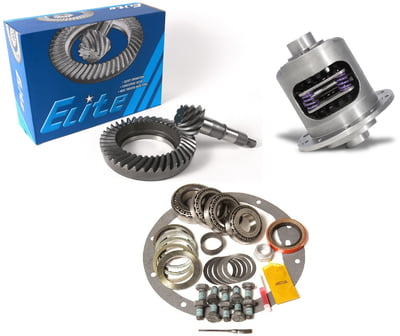

Package Includes:

1- GM 9.5" Chevy 14 Bolt Elite Ring and Pinion set

1- GM 9.5" Chevy 14 Bolt Detroit Truetrac Posi LSD

1- GM 9.5" Chevy 14 Bolt Master install kit
